Fender, Removing And Installing: Installing
WARNING: This page is about a different car, the 2021 Volkswagen Tiguan, 2020 Volkswagen Tiguan, 2019 Volkswagen Tiguan, and 2018 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

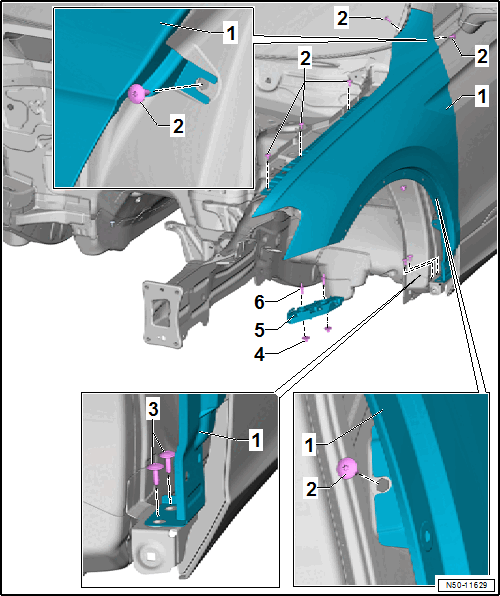

Install the fender -1- so that it is without tension.
Install in reverse order of removal and note the following:
-- With the fender brace loosened, align the fender without tension.
-- Always insert the Zinc Spacer: AKL 381 035 50 -7- between the fender and side sills.
-- Note the parallel alignment and gap dimensions. Refer to GAP DIMENSIONS .
