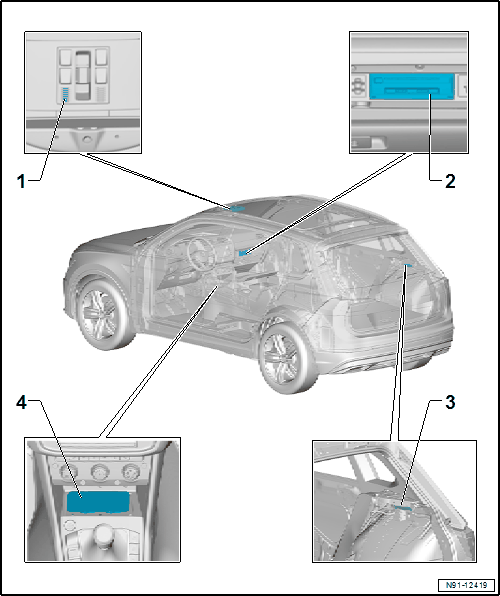

Component Location Overview - Telephone System
WARNING: This page is about a different car, the 2021 Volkswagen Tiguan, 2020 Volkswagen Tiguan, 2019 Volkswagen Tiguan, and 2018 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.
- Telephone Microphone -R38-
- In the Front Interior Lamp -WX1-
- Removing and Installing. Refer to Telephone Microphone -R38-, REMOVING AND INSTALLING .
- Information Electronics Control Module 1 -J794-
- In the glove compartment
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Mobile Communication 2-Way Signal Amplifier -J984-
- Behind the luggage compartment trim panel on the right side
- Removing and Installing. Refer to Mobile Communication 2-Way Signal Amplifier -J984-, REMOVING AND INSTALLING .
- Storage Compartment with Cell Phone Interface -R265-
- In the front center console storage compartment
- Removing and Installing. Refer to Storage Compartment with Cell Phone Interface -R265-, REMOVING AND INSTALLING .
