Left And Right Rear Treble Speaker -R14- / -R16-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2021 Volkswagen Tiguan, 2020 Volkswagen Tiguan, 2019 Volkswagen Tiguan, and 2018 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment.
-- Move the ignition key outside of the vehicle to prevent the ignition from switching on unintentionally.
-- Remove the left rear door trim panel. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .
CAUTION:
The door trim panel must not be damaged by drilling.

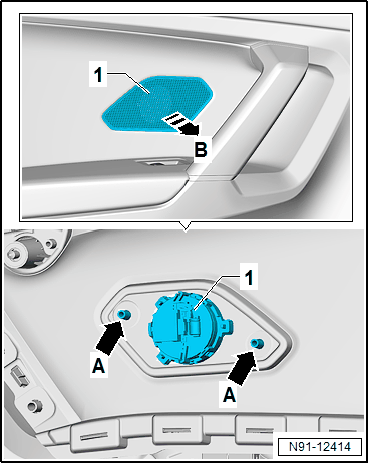

-- Carefully loosen the securing points -A arrows- consecutively on the trim using a suitable drill bit.
-- Remove the Left Rear Treble Speaker -R14- with trim -1- from the rear door trim panel in the direction of the -arrow B-.
