Left And Right Rear Bass Speaker -R15- / -R17-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2021 Volkswagen Tiguan, 2020 Volkswagen Tiguan, 2019 Volkswagen Tiguan, and 2018 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment.

-- Move the ignition key outside of the vehicle to prevent the ignition from switching on unintentionally.

-- Remove the left rear door trim panel. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .

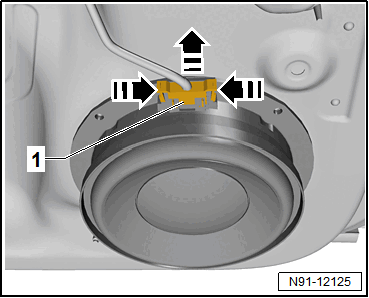

-- Release and remove the connector -1- on the Left Rear Bass Speaker -R15- in the direction of the -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

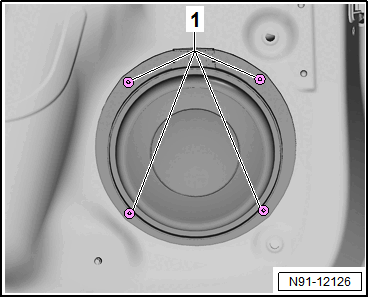

-- Drill out the pop rivets -1- using a :VAS5134 and a suitable spiral bit.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Left Rear Bass Speaker -R15- from the inner door panel.

CAUTION:

Always remove any shavings resulting from the drilling from the door, otherwise they may cause corrosion damage later.

If the paint on the door frame gets damaged during drilling, touch-up immediately.
