Light Switch Trim, Removing And Installing: Removing
WARNING: This page is about a different car, the 2021 Volkswagen Tiguan, 2020 Volkswagen Tiguan, 2019 Volkswagen Tiguan, and 2018 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.

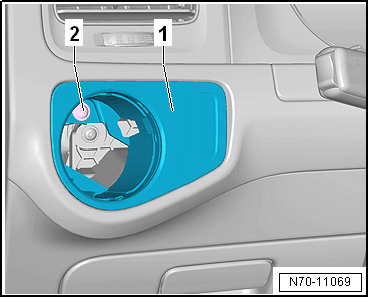

-- Remove the Rotary Light Switch -EX1-. Refer to COMPONENT LOCATION OVERVIEW - INSTRUMENT PANEL CONTROLS .
-- Remove the bolt -2-.
-- Remove the light switch trim -1- from the instrument panel toward the rear.
-- If equipped, disconnect the connector from the Headlamp Range Control Adjuster -E102-.
