Instrument Panel, Removing And Installing: Installing

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal and note the following:

NOTE:

Check all the fasteners for damage and replace if necessary.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

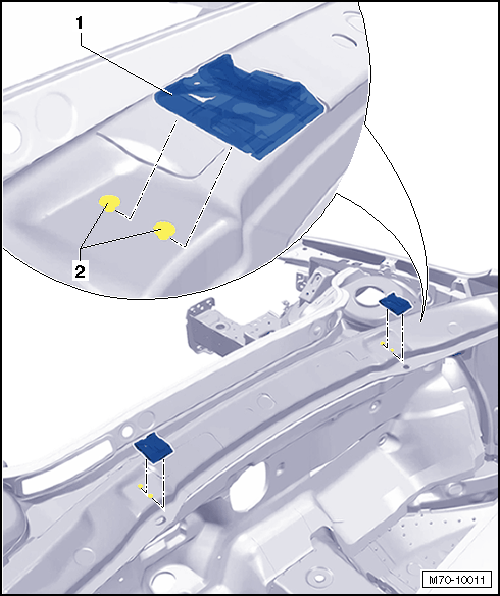

-- Make sure the mounts -1- are installed with stud bolts -2- before installing the instrument panel.

-- Mount the instrument panel onto the instrument panel crossmember with a second technician.

WARNING:

Follow all safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS .
Before handling pyrotechnic components (for example, connecting a connector), the person handling it must "discharge static electricity". For example, this can be done by briefly touching the door striker.

NOTE:

Make sure the connectors are pushed in all the way and that they engage audibly.

WARNING:

The ignition must be on when connecting the battery. If pyrotechnic components (for example, airbag, belt tensioner) are not repaired correctly, they may deploy unintentionally after connecting battery. There must not be anyone in the vehicle interior when connecting the battery.

-- Connect the battery ground cable with the ignition switched on. Refer to BATTERY .

NOTE:

If the Airbag Indicator Lamp -K75- indicates a fault, check the DTC memory, erase it and check it again using the Vehicle Diagnostic Tester.
