Spring, Removing And Installing: Installing

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. Note the following:

-- Make sure the washer is not damaged.

-- Replace the washer if necessary.

-- Install the washer on the coil spring.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The spring start -arrow- must touch the stop of lower spring support.

-- Install the spring and the spring support.

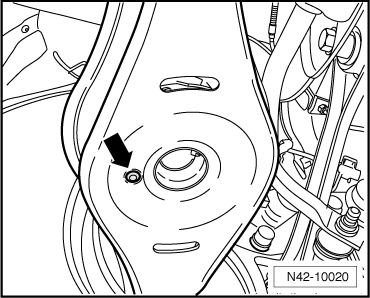

-- Spring seat has a pin on bottom.

-- Insert this pin into hole of lower transverse link -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the top of the spring support into the upper spring end.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- The bead on the spring support -arrow- must fit into the coil spring correctly.

-- Release the tension on the spring, guiding upper spring support onto tab of body.

-- Remove the Spring Compressor.

-- Install the wheel and tighten. Refer to WHEEL BOLT TIGHTENING SPECIFICATIONS .
