Engine Speed Sensor -G28-, EMOVING AND INSTALLING: Removing

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- Remove the bolt -arrow- and push the Low Temperature Circuit Coolant Pump -V468- to the side.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -1-.

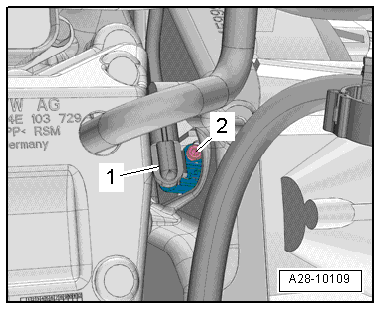

Fig 1: Identifying Engine Speed Sensor -G28- And Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -2- and the Engine Speed Sensor -G28-.
