Window Guide, Removing And Installing: Removing

-- Remove the rear door trim panel. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the inner window shaft strip. Refer to INNER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .

-- Remove the outer window shaft strip. Refer to OUTER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .

-- Remove the B-pillar trim on the rear door. Refer to REAR DOOR B-PILLAR TRIM, REMOVING AND INSTALLING .

-- Remove the C-pillar door trim on the rear door. Refer to DOOR C-PILLAR TRIM, REMOVING AND INSTALLING .

-- Remove the rear door window. Refer to REAR DOOR WINDOW, REMOVING AND INSTALLING .

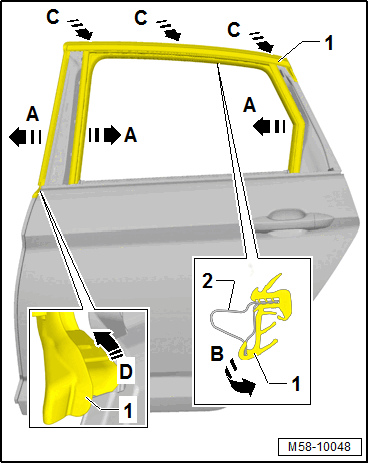

-- Remove the window guide -1- from the door inner panel in direction of -arrow D-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the window guide -1- from the door mounts in direction of -arrow A-.

-- Roll the window guide sealing lip -1- off the door flange -2- in direction of -arrow B-.

-- Pull the window guide -1- evenly off the door flange -2- in direction of -arrow C-.
