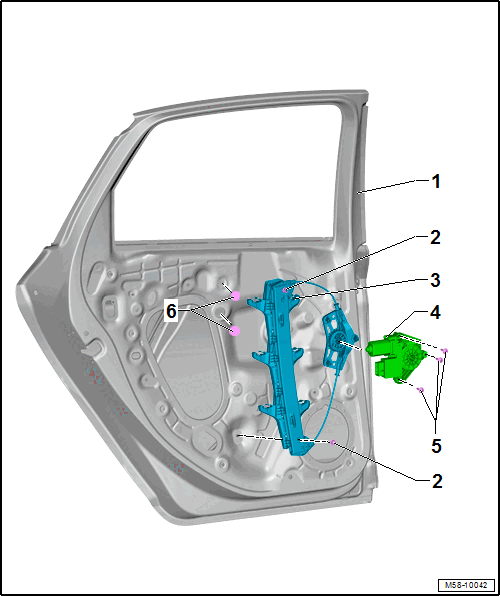

Overview - Window Regulator
NOTE:
The illustration shows the left side. The right side is done the same.
- Rear Door
- Hex Nut
- 8 Nm
- Quantity: 2
- Window Regulator
- Removing and Installing. Refer to WINDOW REGULATOR, REMOVING AND INSTALLING .
- Window Regulator Motor
- Removing and Installing. Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
- Bolt
- 3 Nm
- Quantity: 3
- Sticker
- 40 mm diameter
- Use commercially available duct tape if needed
