Overview - Front Door Window

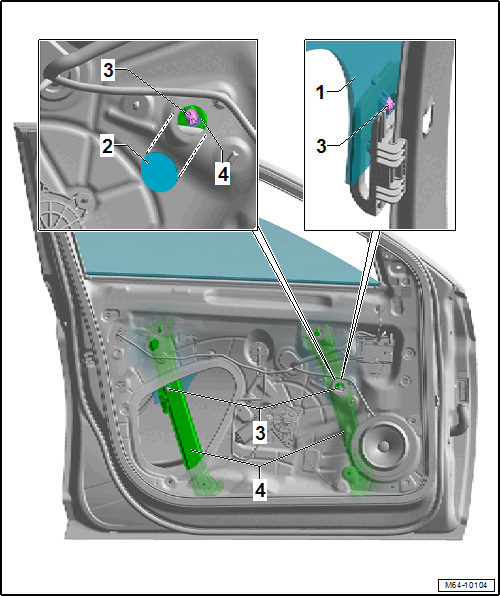

GWWM64-10104Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Front Door Window
  2. Sticker
    • 40 mm diameter
    • Use commercially available duct tape if needed
    • The sticker must completely cover the openings.
  3. Catch
    • Window regulator component
    • Quantity: 2
    • For attaching the door window on the window regulator
  4. Window Regulator
