Outer Window Shaft Strip, Removing And Installing: Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the exterior rearview mirror. Refer to EXTERIOR REARVIEW MIRROR, REMOVING AND INSTALLING .

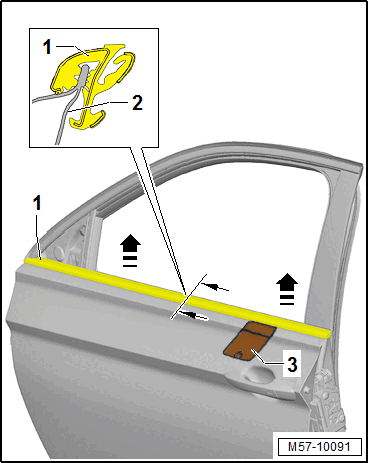

-- Lift off the outer window shaft strip -1- evenly and without bending it using the : T10039/1  -3- from the door flange -2- in direction of the -arrow-.
