Lock Cylinder, Removing And Installing: Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the lock cylinder cap. Refer to CAP WITH LOCK CYLINDER, REMOVING AND INSTALLING .

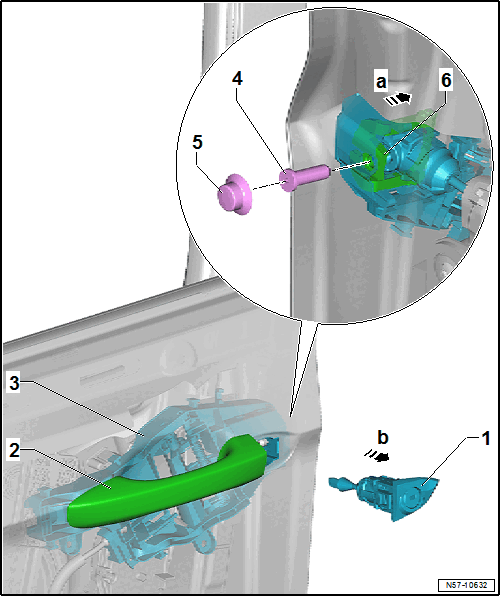

-- Pry out the cover -5-.

-- Remove the door handle -2- all the way.

-- Remove the bolt -4- all the way.

-- Push in the bolt -4- with the locking mechanism -6- in direction of -arrow a-. Only then is the lock cylinder released.

-- Remove the door handle -2- from the door.

-- Remove the lock cylinder housing -1- from the mounting bracket -3- at a right angle in direction of -arrow b- to the door.
