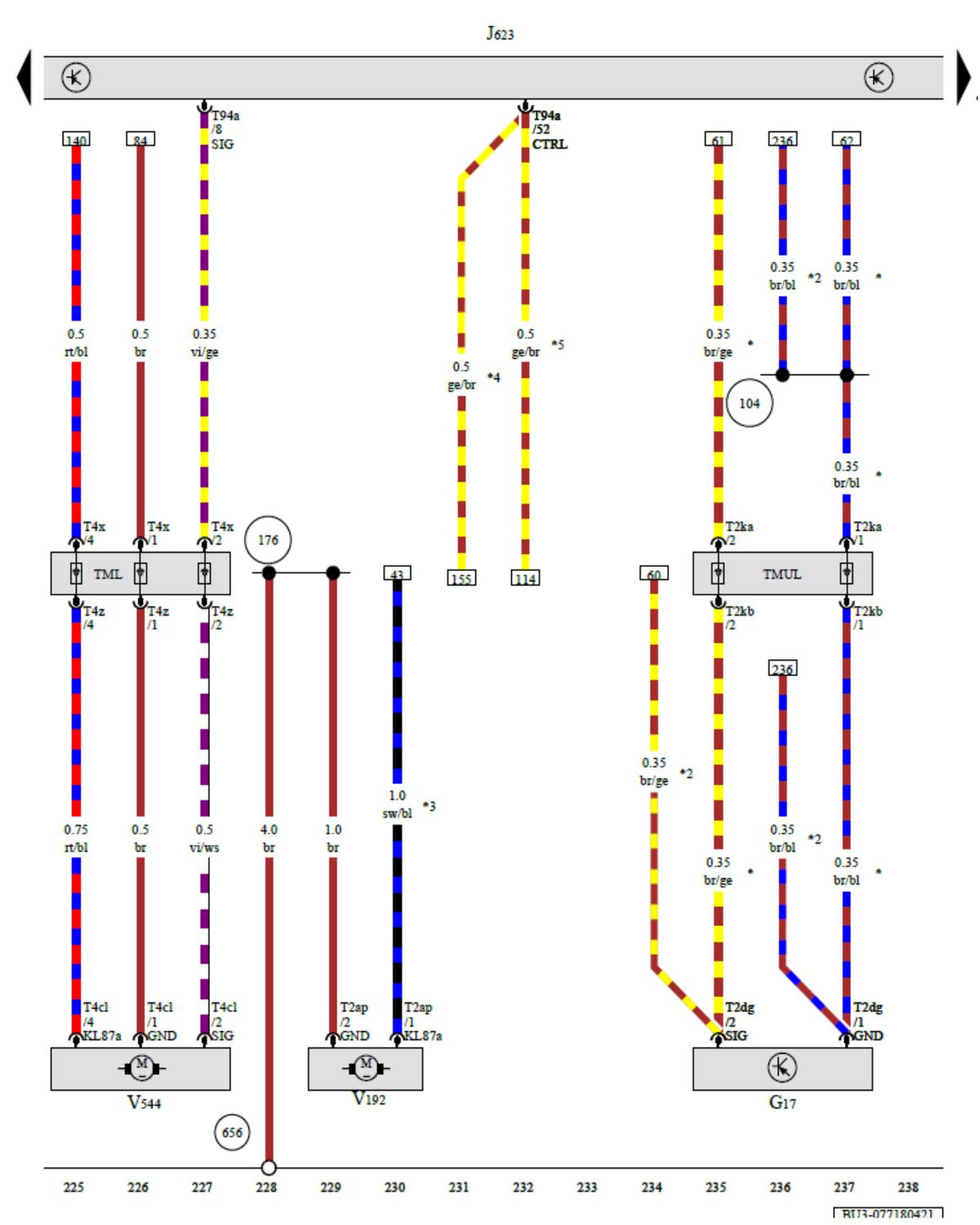

Outside Air Temperature Sensor, Engine/Motor Control Module, Brake System Vacuum Pump, Radiator Shutter Motor: Notes

GWWBU3-042161217Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
