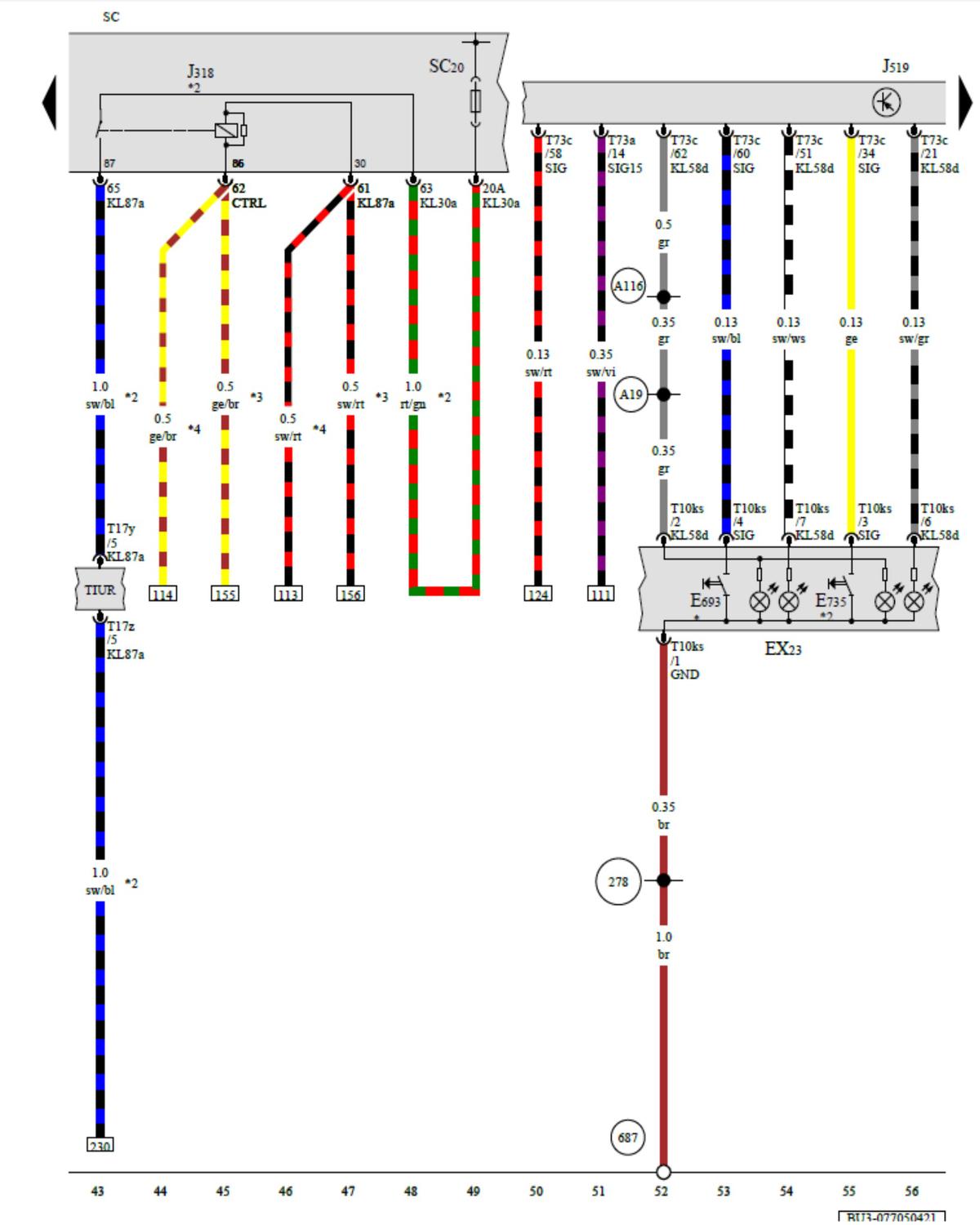

Center Console Switch Module 1, Start/Stop Mode Button, Vacuum Pump Relay, Vehicle Electrical System Control Module, Fuse Panel C: Notes

GWWBU3-042051217Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
