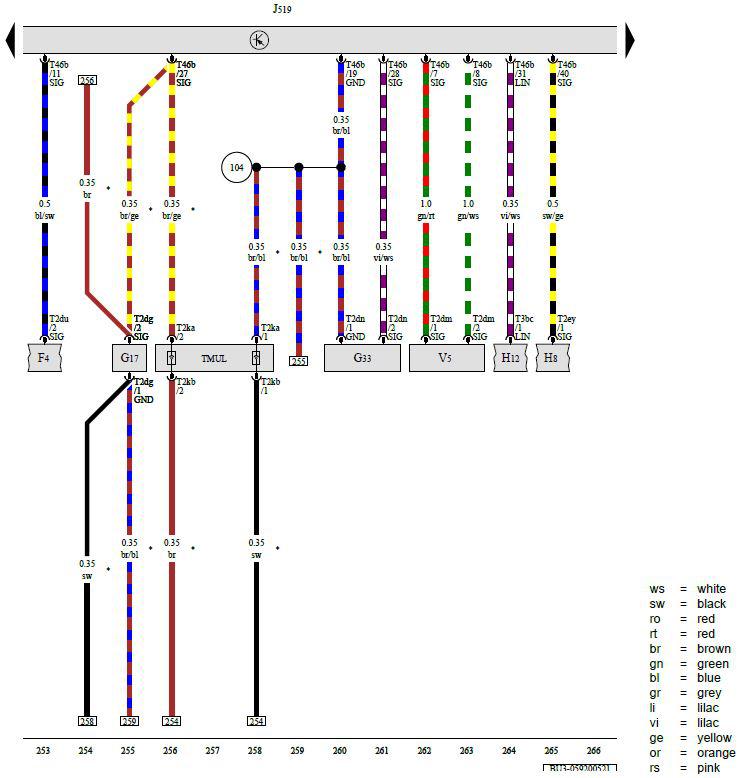

Vehicle Electrical System Control Module (16 Of 17)
F4 - Back-Up Lamp Switch
G17 - Outside Air Temperature Sensor
G33 - Windshield Washer Fluid Level Sensor
H8 - Anti-Theft Alarm System Horn
H12 - Alarm Horn
J519 - Vehicle Electrical System Control Module
T2dg - 2-Pin Connector
T2dm - 2-Pin Connector
T2dn - 2-Pin Connector
T2du - 2-Pin Connector
T2ey - 2-Pin Connector
T2ka - 2-Pin Connector
T2kb - 2-Pin Connector
T3bc - 3-Pin Connector
T46b - 46-Pin Connector
TMUL - Coupling Point on Engine, Bottom Left
V5 - Windshield Washer Pump
104 - Ground Connection (in Right Front Wiring Harness), Sensor Grounds
* - Depending on Equipment
