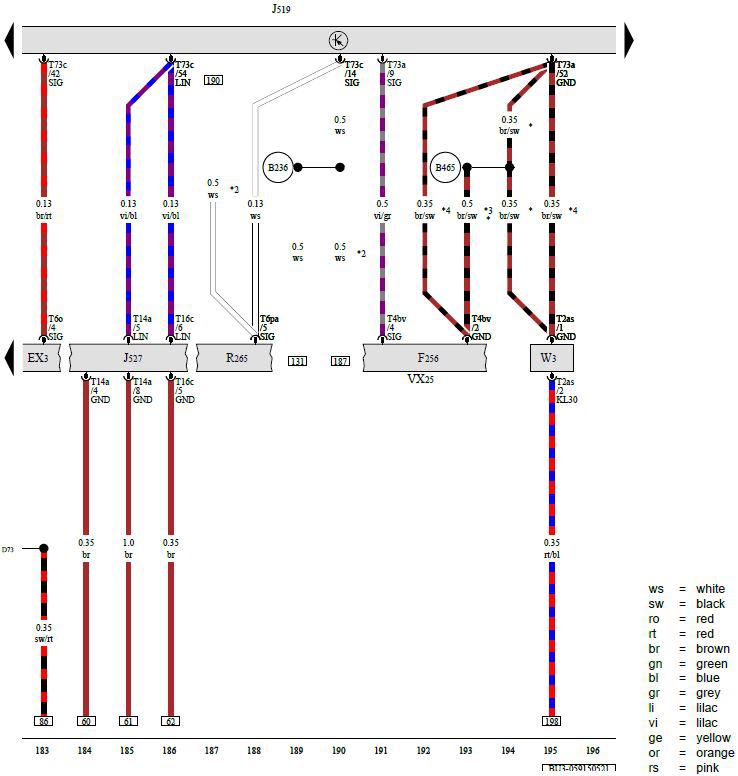

Vehicle Electrical System Control Module (12 Of 17)
EX3 - Emergency Flasher Switch
F256 - Rear Lid Lock Unit
J519 - Vehicle Electrical System Control Module
J527 - Steering Column Electronics Control Module
R265 - Storage Compartment with Cell Phone Interface
T2as - 2-Pin Connector
T4bv - 4-Pin Connector
T6o - 6-Pin Connector
T6pa - 6-Pin Connector
T14a - 14-Pin Connector
T16c - 16-Pin Connector
T73a - 73-Pin Connector
T73c - 73-Pin Connector
VX25 - Rear Lid Lock Unit
W3 - Luggage Compartment Lamp
B236 - Positive Connection 6 (30a) (in Interior Wiring Harness)
B465 - Connection 1 (in Main Wiring Harness)
D73 - Positive Connection (54) (in Engine/Motor Compartment Wiring Harness)
* - Omitted as a Running Change
*2 - Depending on Equipment
*3 - Diameter Depends on Equipment
*4 - Running Change
