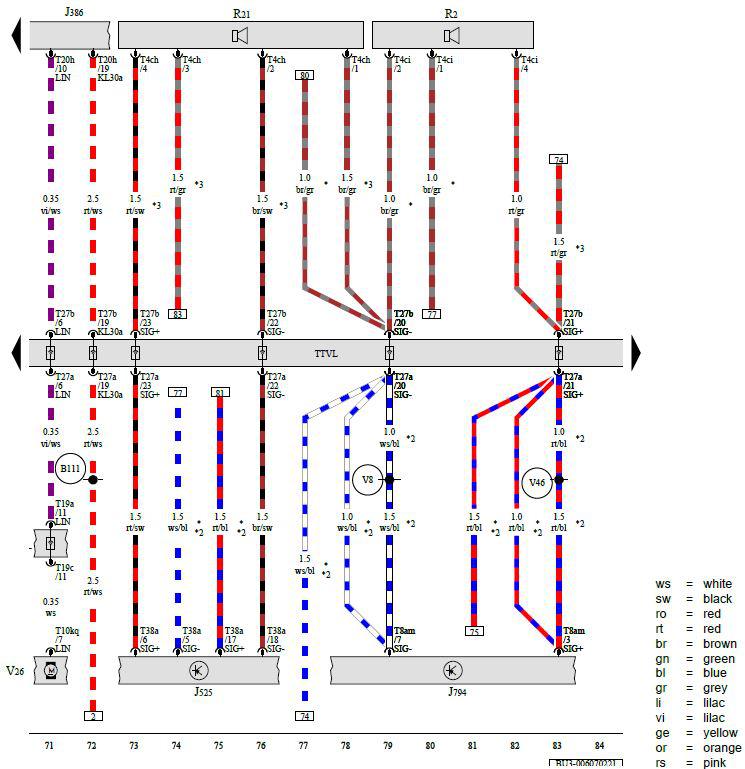

Driver Door Control Module, Digital Sound System Control Module, Information Electronics Control Module 1, Left Front Door Coupling Point
J386 - Driver Door Control Module
J525 - Digital Sound System Control Module
J794 - Information Electronics Control Module 1
R2 - Left Front Speaker
R21 - Left Front Bass Speaker
T4ch - 4-Pin Connector
T4ci - 4-Pin Connector
T8am - 8-Pin Connector
T10kq - 10-Pin Connector
T19a - 19-Pin Connector, Black
T19c - 19-Pin Connector, Black
T20h - 20-Pin Connector
T27a - 27-Pin Connector, Black
T27b - 27-Pin Connector, Black
T38a - 38-Pin Connector
TTVL - Left Front Door Coupling Point
V26 - Left Rear Window Regulator Motor
B111 - Positive Connection 1 (30a) (in Interior Wiring Harness)
V8 - Left Front Speaker Negative Connection (in Speaker Wiring Harness)
V46 - Left Front Speaker Connection (in Speaker Wiring Harness)
* - Depending on Equipment
*2 - The Color of the Wires Depends on Vehicle Equipment
*3 - For Vehicles with Sound Package
