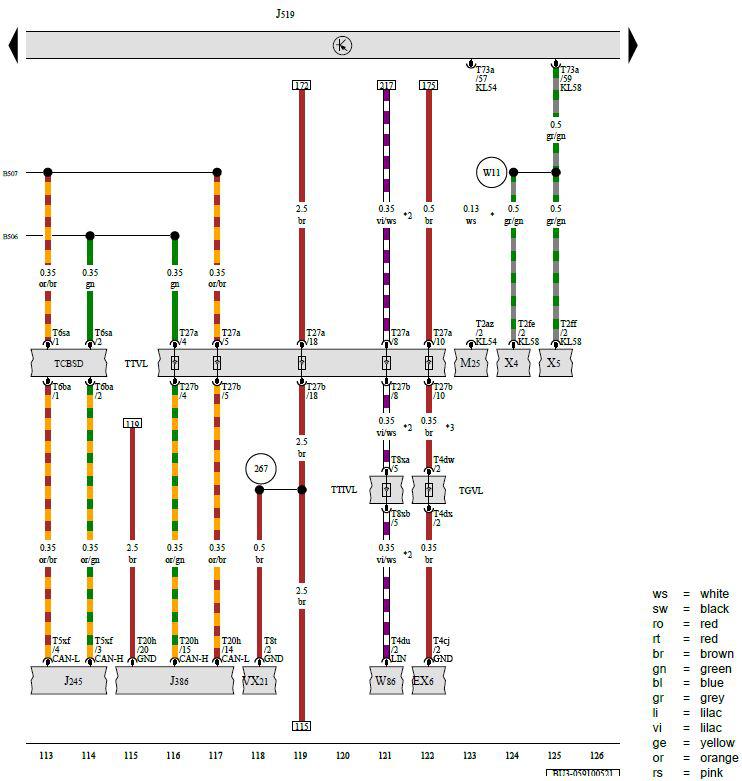

Vehicle Electrical System Control Module (7 Of 17)
EX6 - Driver Exterior Door Handle
J245 - Sunroof Control Module
J386 - Driver Door Control Module
J519 - Vehicle Electrical System Control Module
M25 - High-Mounted Brake Lamp Bulb
T2az - 2-Pin Connector
T2fe - 2-Pin Connector
T2ff - 2-Pin Connector
T4cj - 4-Pin Connector
T4du - 4-Pin Connector
T4dw - 4-Pin Connector
T4dx - 4-Pin Connector
T5xf - 5-Pin Connector
T6ba - 6-Pin Connector
T6sa - 6-Pin Connector
T8t - 8-Pin Connector
T8xa - 8-Pin Connector
T8xb - 8-Pin Connector
T20h - 20-Pin Connector
T27a - 27-Pin Connector, Black
T27b - 27-Pin Connector, Black
T73a - 73-Pin Connector
TCBSD - CAN Bus Sunroof Coupling Point
TGVL - Left Front Exterior Door Handle Coupling Point
TTIVL - Coupling Point in Left Front Door
TTVL - Left Front Door Coupling Point
VX21 - Driver Door Lock Unit
W86 - Driver Side Door Ambient Lighting Lamp
X4 - Left License Plate Lamp
X5 - Right License Plate Lamp
267 - Ground Connection 2 (in Driver Door Wiring Harness)
B506 - Comfort CAN Bus High Connection (in Interior Wiring Harness)
B507 - Comfort CAN Bus Low Connection (in Interior Wiring Harness)
W11 - Connection 58 (in Rear Lid Wiring Harness)
* - Depending on Equipment
*2 - For Vehicles with Ambient Lighting
*3 - Diameter Depends on Equipment
