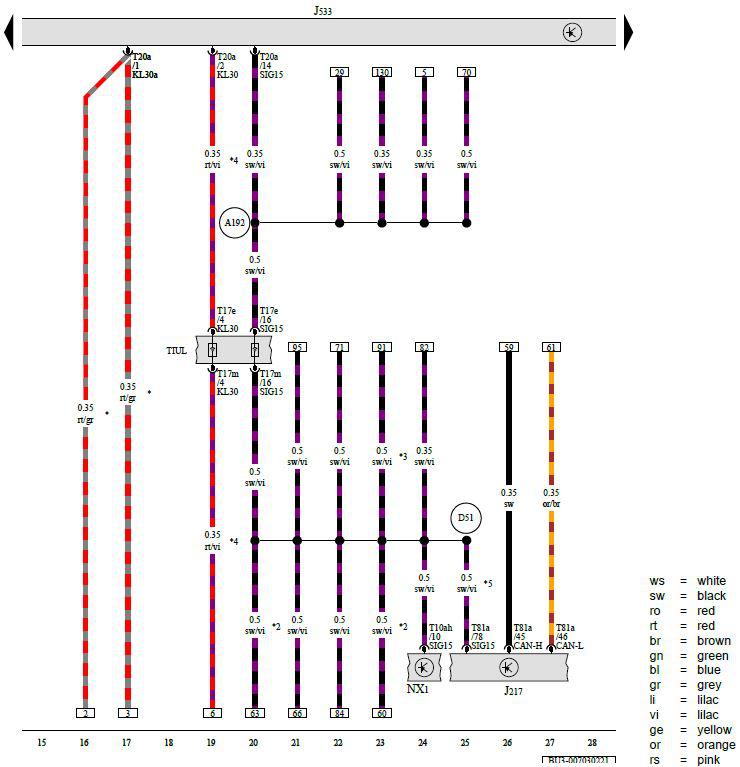

Transmission Control Module, Data Bus on Board Diagnostic Interface

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J217 -  Transmission Control Module

J533 -  Data Bus on Board Diagnostic Interface

NX1 -  Transmission

T10ah -  10-Pin Connector

T17e -  17-Pin Connector, Blue

T17m -  17-Pin Connector, Blue

T20a -  20-Pin Connector

T81a -  81-Pin Connector

TIUL -  Coupling Point in Interior, Bottom Left

A192 -  Positive Connection 3 (15a) (in Instrument Panel Wiring Harness)

D51 -  Positive Connection 1 (15) (in Engine/Motor Compartment Wiring Harness)

* -  Depending on Equipment

*2 -  For Vehicles with Automatic Transmission (DSG)

*3 -  For Vehicles with Diesel Engine

*4 -  For Vehicles Without Start/Stop System

*5 -  For Vehicles with Automatic Transmission, Signal Output
