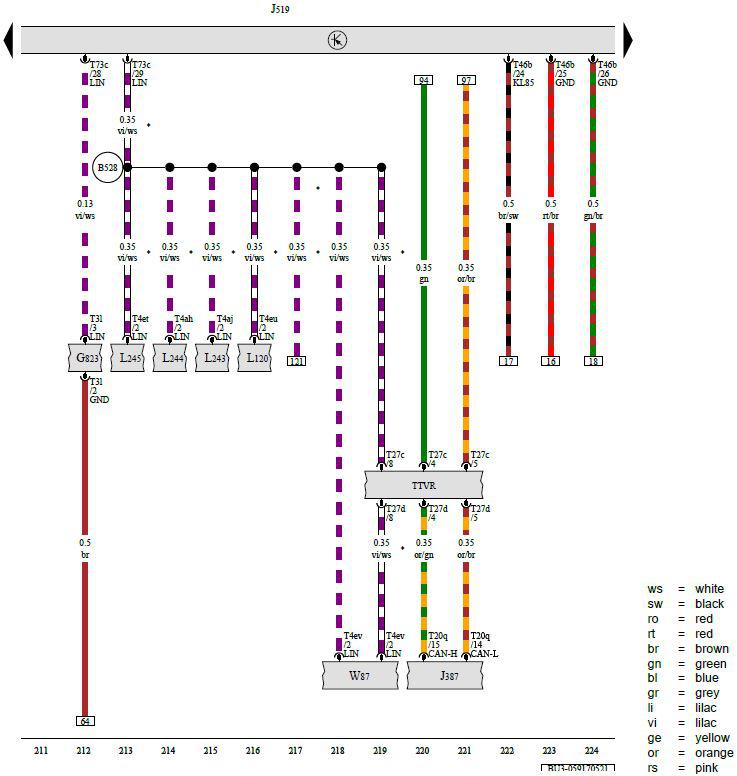

Vehicle Electrical System Control Module (14 Of 17)
G823 - Humidity, Rain and Light Recognition Sensor
J387 - Front Passenger Door Control Module
J519 - Vehicle Electrical System Control Module
L120 - Storage Compartment Illumination Bulb
L243 - Instrument Panel Contour Illumination Lamp 1
L244 - Instrument Panel Contour Illumination Lamp 2
L245 - Instrument Panel Contour Illumination Lamp 3
T3l - 3-Pin Connector
T4ah - 4-Pin Connector
T4aj - 4-Pin Connector
T4et - 4-Pin Connector
T4eu - 4-Pin Connector
T4ev - 4-Pin Connector
T20q - 20-Pin Connector
T27c - 27-Pin Connector
T27d - 27-Pin Connector
T46b - 46-Pin Connector
T73c - 73-Pin Connector
TTVR - Right Front Door Coupling Point
W87 - Passenger Side Door Ambient Lighting Lamp
B528 - LIN Bus Connection 1 (in Main Wiring Harness)
* - For Vehicles with Ambient Lighting
