Selector Lever Handle, Removing And Installing: Installing

Install in the reverse order of removal while noting the following:

• The selector lever is in the "D" position.
• It is possible that the button could be pressed into the handle. Never install the handle when the button is pressed in.
  Fig 1: Identifying Caution For Button

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Move the button into the installation position. Refer to BUTTON IN HANDLE, MOVING INTO INSTALLATION POSITION .
• A new handle is delivered with an assembly fastener. Pull out the retainer in the direction of the -arrow- just before installing.
  Fig 2: Identifying Direction To Pull Out Assembly Aid Just Prior To Installation

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the handle with a new clamp -arrow-. Do not clamp the clamps yet.

Fig 3: Identifying Clamp

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the button after installation.

Tip:

• If the button stays in the handle after being pressed, this means it was installed incorrectly. If this happens, remove the handle again and move the button in the installation position again. Refer to BUTTON IN HANDLE, MOVING INTO INSTALLATION POSITION . Install the handle again.

-- If the button returns to its starting position after being pressed, the clamp can be fastened using the : VAG1275A  .

-- Connect the connector.

-- Check the selector mechanism. Refer to SHIFT MECHANISM, CHECKING .

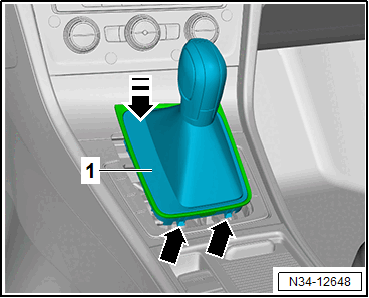

-- Insert the rear of the shift cover -1- first. Then engage in the center console at the front without pressing on the chrome frame.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
