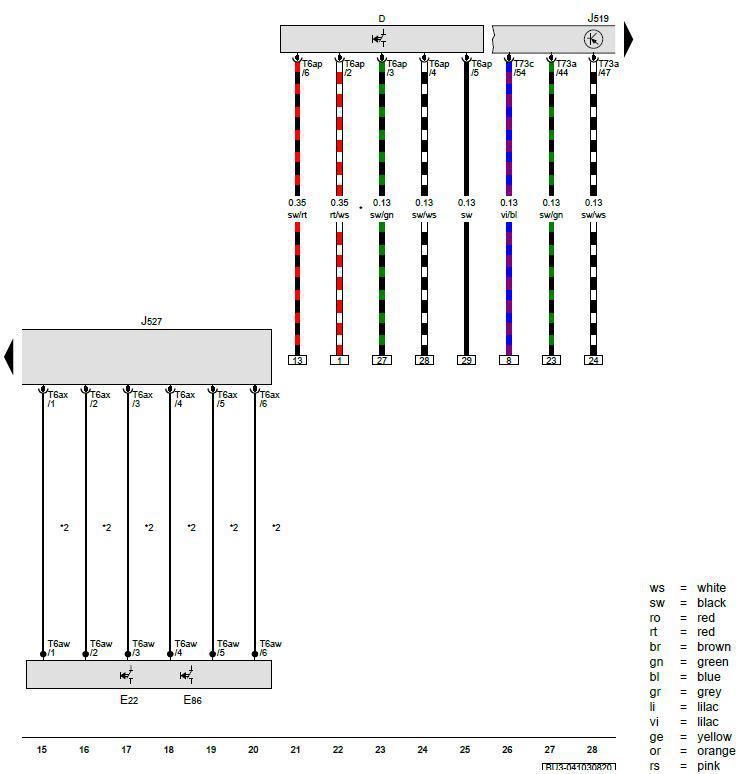

Ignition/Starter Switch, Windshield Wiper Intermittent Mode Switch, Multifunction Indicator Selection Switch, Vehicle Electrical System Control Module, Steering Column Electronics Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

D -  Ignition/Starter Switch

E22 -  Windshield Wiper Intermittent Mode Switch

E86 -  Multifunction Indicator Selection Switch

J519 -  Vehicle Electrical System Control Module

J527 -  Steering Column Electronics Control Module

T6ap -  6-Pin Connector

T6aw -  6-Pin Connector

T6ax -  6-Pin Connector

T73a -  73-Pin Connector, Black

T73c -  73-Pin Connector

* -  Depending on Equipment

*2 -  Adapter Cable
