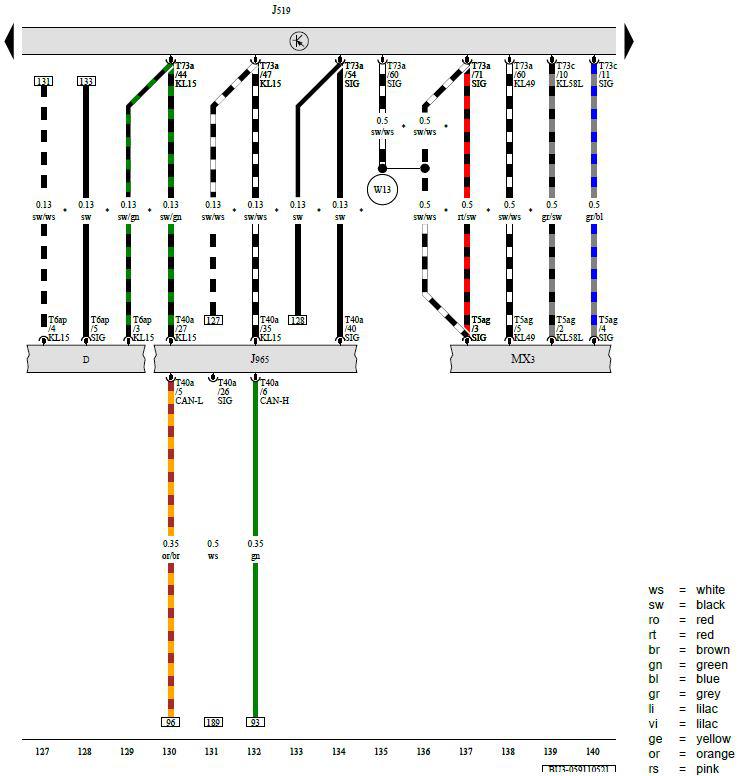

Vehicle Electrical System Control Module (8 Of 17)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

D -  Ignition/Starter Switch

J519 -  Vehicle Electrical System Control Module

J965 -  Access/Start System Interface

MX3 -  Left Tail Lamp

T5ag -  5-Pin Connector

T6ap -  6-Pin Connector

T40a -  40-Pin Connector

T73a -  73-Pin Connector

T73c -  73-Pin Connector

W13 -  Connection 58L (in Rear Wiring Harness)

* -  Depending on Equipment
