USB Charging Socket 1 -U37-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the center console rear vent. Refer to REAR CENTER CONSOLE VENT, REMOVING AND INSTALLING .

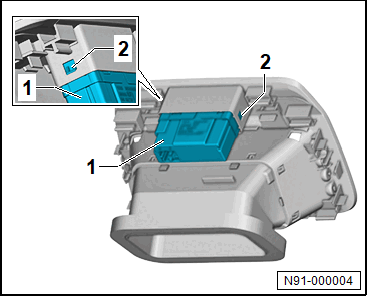

-- Release the hook -2- and remove the USB Charging Socket 1 -U37- -1-.

GWWN91-000004Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
