Overview - Steering Wheel

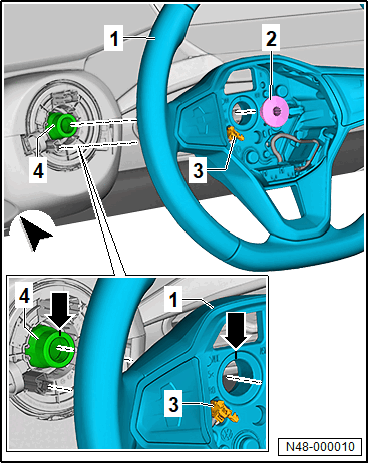

Fig 1: Steering Wheel
GWWN48-000010Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Steering Wheel
  2. Bolt
    • Replace after removing
    • 30 Nm + 90°
  3. Connector
  4. Steering Column
