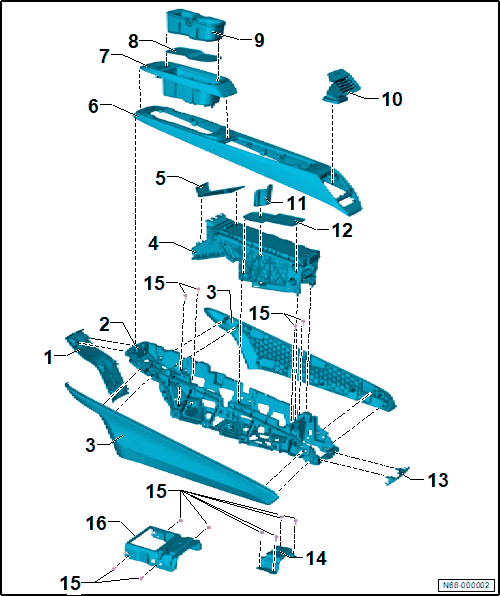

Overview - Center Console

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Center Console Front Trim
- Refer to CENTER CONSOLE FRONT TRIM, REMOVING AND INSTALLING
Center Console
- Refer to Center Console, Removing and Installing .
Center Console Side Trim Panel
- Refer to CENTER CONSOLE SIDE TRIM PANEL, REMOVING AND INSTALLING
Rear Center Console Storage Compartment
- Refer to Rear Center Console Storage Compartment, Removing and Installing .
Storage Compartment Mat
Center Console Cover
- Refer to Center Console Cover, Removing and Installing .
Center Console Insert
- Refer to Center Console Insert, Removing and Installing .
Storage Compartment Mat
Cupholder
- Refer to Cupholder, Removing and Installing .
Rear Center Console Vent
- Refer to Rear Center Console Vent, Removing and Installing .
Storage Compartment Insert
Storage Compartment Mat
Center Console Rear Trim
- Refer to Center Console Rear Trim, Removing and Installing .
Rear Center Console Bracket
- Refer to Center Console Bracket, Removing and Installing .
Bolt
- Quantity: 12
- 6 Nm
Front Center Console Bracket
- Refer to Center Console Bracket, Removing and Installing .
