Center Console, Removing And Installing: Removing

-- Remove the center console cover. Refer to Center Console Cover, Removing and Installing  .

-- Remove the rear center console storage compartment. Refer to Rear Center Console Storage Compartment, Removing and Installing  .

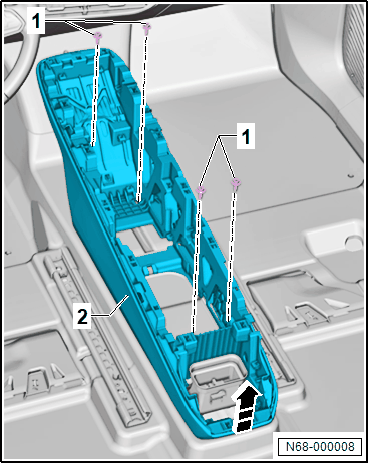

-- Remove the bolts -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open the center console -2- in the -direction of the arrow-.
