Center Console Bracket, Removing And Installing: Removing

-- Remove the front seats. Refer to Front Seat, Removing and Installing .

-- Remove the A-pillar lower trim panels. Refer to A-Pillar Lower Trim Panel, Removing and Installing .

-- Remove the tunnel support cover. Refer to Tunnel Support Cover, Removing and Installing .

-- Remove the center console. Refer to Center Console, Removing and Installing  .

-- Fold the center of the carpet back.

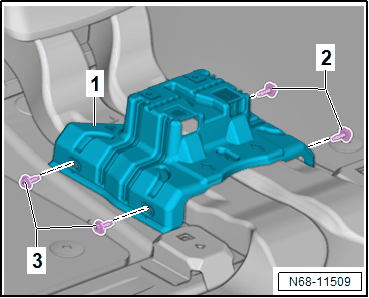

-- Remove the bolts -2- and -3-.

GWWN68-11509Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the front center console bracket -1-.

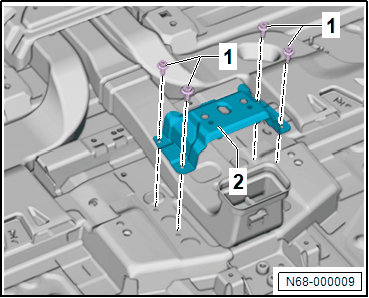

-- Remove the bolts -1-.

GWWN68-000009Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the rear center console bracket -2-.
