Component Location Overview - Potential Equalization Cable

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

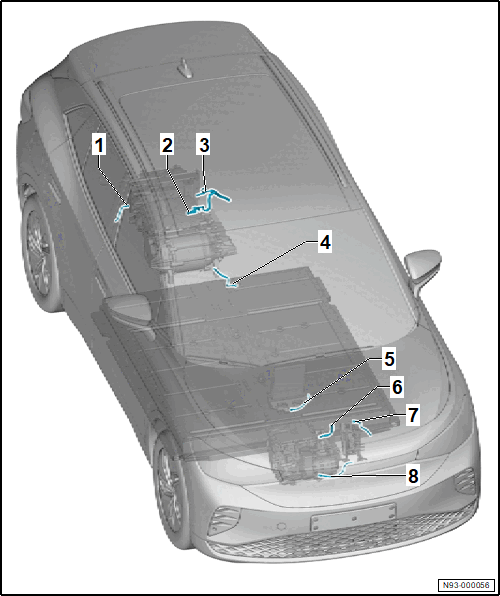

1. Voltage Converter -A19- Potential Equalization
   • Refer to Overview - Voltage Converter - AWD  or Overview - Voltage Converter - RWD  .
2. Three-Phase Current Drive -VX54- Potential Equalization
   • Refer to Overview - Electric Drive Motor, Rear Motor  .
3. High-Voltage Battery Charger 1 -AX4- Potential Equalization
   • Refer to Overview - High-Voltage Battery Charger - AWD  or Overview - High-Voltage Battery Charger - RWD  .
4. High-Voltage Battery 1 -AX2- Potential Equalization
   • Refer to Overview - Removed High-Voltage Battery - 82 KWH  or Overview - Removed High-Voltage Battery - 48, 55, 62 KWH  .
5. High-Voltage Heater (PTC) -ZX17- Potential Equalization
   • Refer to HIGH-VOLTAGE HEATER (PTC) -ZX17-, REMOVING AND INSTALLING .
6. Three-Phase Current Drive 2 -VX97- Potential Equalization
   • Refer to Overview - Electric Drive Motor, Front Motor  .
7. Heating Element (PTC) 3 -Z132- Potential Equalization
   • Refer to HEATING ELEMENT (PTC) 3 -Z132-, REMOVING AND INSTALLING, RWD .
8. A/C Compressor with Magnetic Clutch and Regulator Valve -VX81- Potential Equalization
   • Refer to OVERVIEW - A/C COMPRESSOR .
