Overview - Accelerator Pedal Module

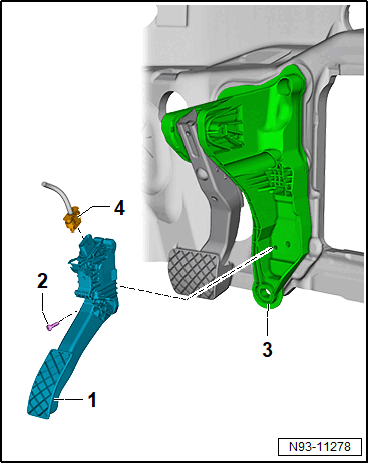

Fig 1: Exploded View Of Accelerator Pedal Module
GWWN93-11278Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Accelerator Pedal Module -GX2-
  2. Bolt
    • 3.5 Nm
  3. Mounting Bracket
  4. Connector
