Accelerator Pedal Module GX2, Removing And Installing: Removing

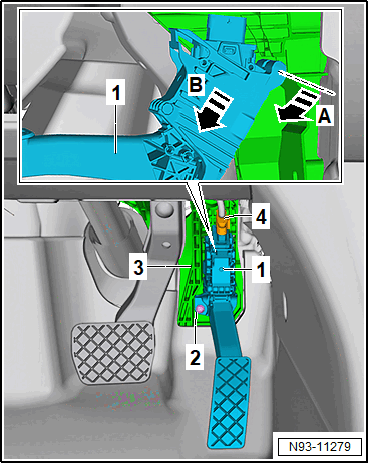

-- Disconnect the connector -4-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -2-.

-- Pivot the Accelerator Pedal Module -GX2- -1- in -direction of the arrow A- and remove in the -direction of the arrow B- from the mount -3-.
