Fresh Air Blower Control Module -J126-, Removing And Installing: Removing

-- Remove the heater and A/C unit air intake housing. Refer to Heater and A/C Unit Air Intake Housing, Removing and Installing .

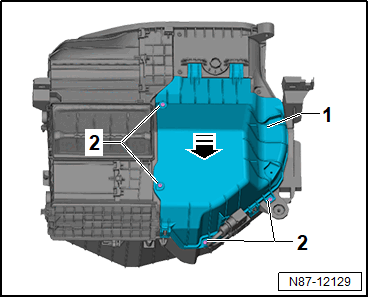

-- Remove the bolts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the cover -1- in the -direction of the arrow-.

-- Disconnect the connector -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

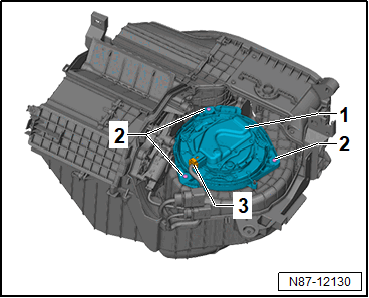

-- Remove the bolts -2-.

CAUTION:

There is a risk of burns from the hot radiating surface of the fresh air blower control module.

It is possible to burn hands.

- Wear safety gloves.

CAUTION:

Risk of damaging the fresh air blower if operated incorrectly.

Imbalance and problems during operation is possible.

- Avoid using force on the fan wheel.

- Do not move the balancing weights at the fan wheel.

- Do not place the fresh air blower on the fan wheel.

-- Remove the Fresh Air Blower Control Module -J126- -1-.
