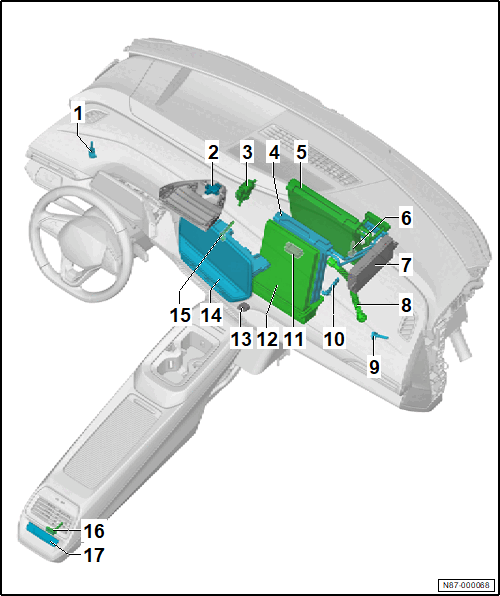

Component Location Overview - Components In Front Vehicle Interior

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Left Vent Temperature Sensor -G150-
   • Refer to LEFT VENT TEMPERATURE SENSOR -G150-, REMOVING AND INSTALLING  .
2. Rain/Light Recognition Sensor -G397-
   • with A/C Humidity Sensor -G260-
   • with Sunlight Photo Sensor -G107-
   • Refer to RAIN/LIGHT RECOGNITION SENSOR G397, REMOVING AND INSTALLING .
3. Actuator
   • Example for all actuators
   • Refer to OVERVIEW - ADJUSTMENT MOTORS, PR NUMBER KC0, KH4  / OVERVIEW - ADJUSTMENT MOTORS, PR NUMBER KH7  .
4. Heat Condenser
   • Depending on equipment/version
   • Refer to Heat Condenser, Removing and Installing  .
5. Evaporator
   • Refer to EVAPORATOR, REMOVING AND INSTALLING, R1234YF  / EVAPORATOR, REMOVING AND INSTALLING, R744  .
6. Evaporator Temperature Sensor -G308-
   • Refer to EVAPORATOR TEMPERATURE SENSOR -G308-, REMOVING AND INSTALLING  .
7. Heating and Air Conditioning Control Module -J979-
   • Refer to HEATING AND AIR CONDITIONING CONTROL MODULE J979, REMOVING AND INSTALLING  .
8. Condensation Water Drain Hose
   • Refer to Condensation Water Drain, Checking  .
   • Refer to Condensation Water Drain, Removing and Installing  .
9. Right Vent Temperature Sensor -G151-
   • Refer to Right Vent Temperature Sensor -G151-, Removing and Installing  .
10. Right Footwell Vent Temperature Sensor -G262-
    • Refer to RIGHT FOOTWELL VENT TEMPERATURE SENSOR G262, REMOVING AND INSTALLING  .
11. Vehicle Interior Carbon Dioxide Concentration Sensor -G929-
    • Depending on equipment/version
    • Refer to VEHICLE INTERIOR CARBON DIOXIDE CONCENTRATION SENSOR -G929-, REMOVING AND INSTALLING  .
12. High-Voltage Heater (PTC) -ZX17-
    • With High-Voltage Heater (PTC) Control Module -J848-
    • With High-Voltage Heater (PTC) -Z115-
    • Refer to High-Voltage Heater (PTC) -ZX17-, Removing and Installing  .
13. Vehicle Interior Temperature Sensor -G1090-
    • Refer to Vehicle Interior Temperature Sensor -G1090-, Removing and Installing  .
14. Front Information Display Control Head -J685-
    • Refer to FRONT INFORMATION DISPLAY CONTROL HEAD J685, REMOVING AND INSTALLING  .
15. Left Footwell Vent Temperature Sensor -G261-
    • Refer to LEFT FOOTWELL VENT TEMPERATURE SENSOR G261, REMOVING AND INSTALLING  .
16. Rear Vent Temperature Sensor -G174-
    • Depending on equipment/version
    • Refer to REAR VENT TEMPERATURE SENSOR -G174-, REMOVING AND INSTALLING  .
17. Rear A/C Display Control Head -E265-
    • Depending on equipment/version
    • Refer to Rear A/C Display Control Head E265, Removing and Installing  .
