Vehicle Interior Temperature Sensor -G1090-, Removing And Installing: Removing

The Vehicle Interior Temperature Sensor -G1090- will be called temperature sensor in the information that follows.

-- Remove the tunnel support cover. Refer to TUNNEL SUPPORT COVER, REMOVING AND INSTALLING .

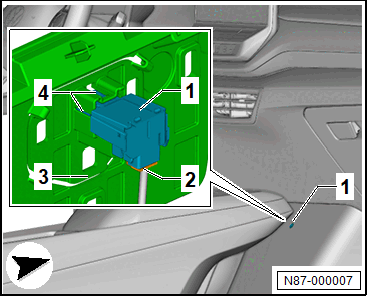

-- Disconnect the connector -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the temperature sensor -1- from the hook -4-.

-- Remove the temperature sensor -1- from the tunnel support cover -3-.
