Vehicle Interior Carbon Dioxide Concentration Sensor -G929-, Removing And Installing: Removing

-- Remove the tunnel support cover. Refer to TUNNEL SUPPORT COVER, REMOVING AND INSTALLING .

CAUTION:

Risk of suffocation from refrigerant R744.

Suffocation from carbon dioxide is possible when the vehicle interior carbon dioxide concentration sensor is removed.

- Only perform procedures in the vehicle interior with open doors.

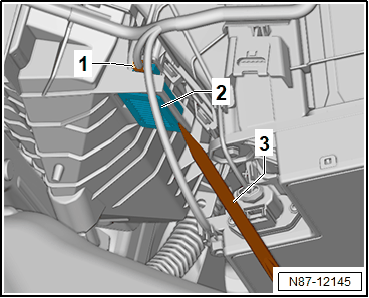

-- Use a commercially available plastic wedge -3- to release the Vehicle Interior Carbon Dioxide Concentration Sensor -G929- -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Vehicle Interior Carbon Dioxide Concentration Sensor -G929- -2-.

-- Disconnect the connector -1-.
