Left FOOTWELL Vent Temperature Sensor G261, Removing And Installing: Removing

-- Remove the driver side footwell vent. Refer to Driver Side Footwell Vent, Removing and Installing  .

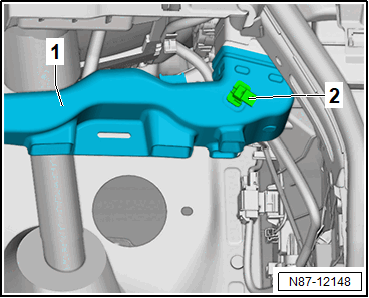

-- Use the commercially available plastic wedge to remove the Left Footwell Vent Temperature Sensor -G261- -2-.

GWWN87-12148Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
