Power Rear Lid Opening Control Module Bracket J938, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

-- Remove the adhesive residue and clean the adhesive surfaces. Refer to Installation Requirements for Components with Adhesive Tape .

-- Remove the protective film from the adhesive tape -2-.

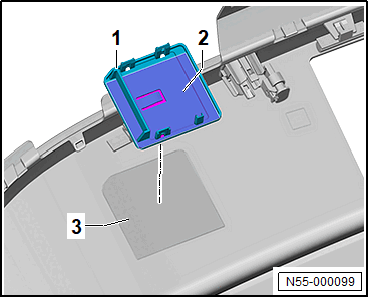

GWWN55-000099Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the bracket -1- on the marked area -3- and press it on.
