End Panel, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the door. Refer to Door, Removing and Installing .

-- Remove the front wheel housing liner. Refer to Front Wheel Housing Liner, Removing and Installing .

-- Release the hook -2-.

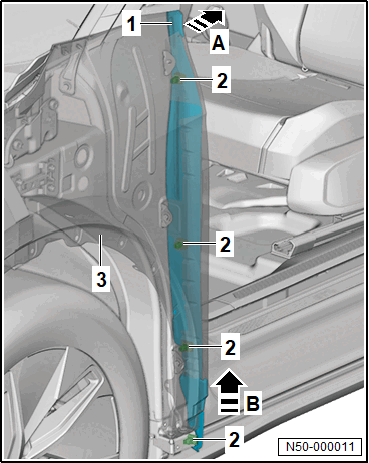

GWWN50-000011Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the end panel -1- at the top slightly in the direction of -arrow A- from the fender -3- and remove in the direction of -arrow B-.
