Outside Air Temperature Sensor G17, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

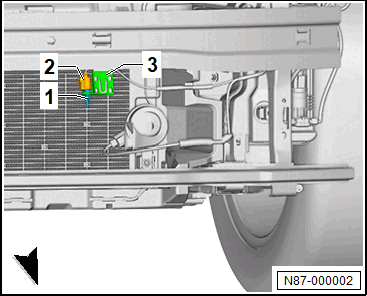

-- Unclip the Outside Air Temperature Sensor -G17- -1- with the bracket -3-.

GWWN87-000002Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -2-.

-- Unclip the temperature sensor -1- from the bracket -3-.
