Overview - Steering Column Switch Module

WARNING: This page is about a different car, the 2023 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

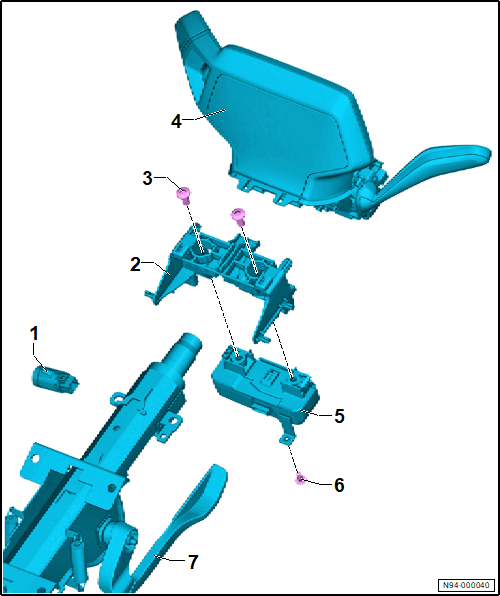

Fig 1: Exploded View Of Steering Column Electronics Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Start System Button -E378-
- Refer to START SYSTEM BUTTON E378, REMOVING AND INSTALLING
Instrument Cluster Bracket
Shear Bolt
- Quantity: 2
Steering Column Electronics Control Module -J527-
- With Windshield Wiper Switch -E- with Windshield Wiper Intermittent Mode Switch -E22- with Turn Signal Switch -E2- with Headlamp Dimmer/Flasher Switch -E4- with Electromechanical Parking Brake Button -E538-
- With Airbag Spiral Spring/Return Spring with Slip Ring -F138- with Selector Lever Park Position Lock Switch -F319-
- With Transmission Range Display -Y6-
- Depending on the equipment/version with Cruise Control Switch -E45- with Cruise Control -Set- Button -E227- with Multifunction Indicator Selection Switch -E86- with Heated Steering Wheel -Z36-
- Refer to Steering Column Electronics Control Module J527, Removing and Installing .
Electronic Steering Column Lock Control Module -J764-
- Refer to ELECTRONIC STEERING COLUMN LOCK CONTROL MODULE J764, REMOVING AND INSTALLING .
Bolt
- 2.5 Nm
Steering Column
- Refer to STEERING COLUMN, REMOVING AND INSTALLING .
