Spring Link Stone Chip Protection, Removing And Installing: Installing: Notes

WARNING: This page is about a different car, the 2023 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

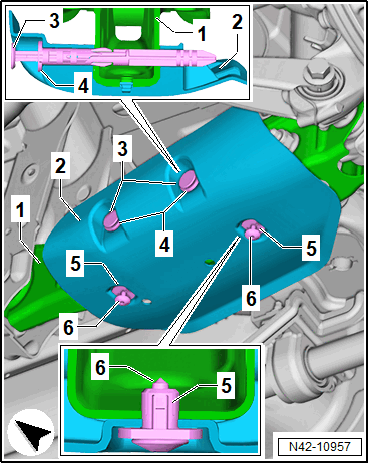

-- Remove the screws -6-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull out the pins -3- all the way, using the Window Release Tool:T10236 .

-- Remove the clips -4- from the spring link -1- using the Window Release Tool:T10236 .

-- Remove the stone chip protection for the spring link -2- from the expanding rivets -5- on the spring link -1-.
