Spring, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

Attachments, Installation Position

-- Insert the washer -2- in the strut mount -1- so that the washer is seated under the hooks from the strut mount.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

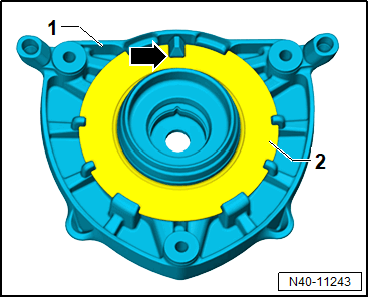

-- Pay attention that the tab -arrow- is seated in the cut-out of the washer -2-.

-- Press the stop buffer -1- in the strut mount -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

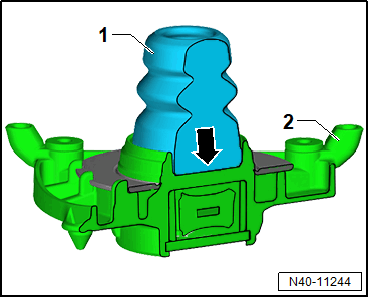

-- Pay attention that the stop buffer -1- completely contacts the strut mount -2- -arrow-.

-- Insert the protective cover -1- in the deep-groove ball bearing -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

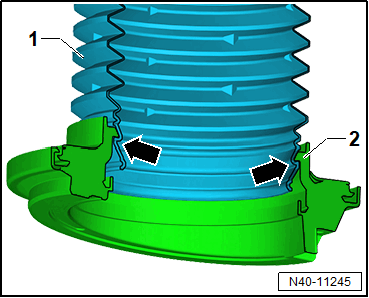

-- Pay attention that the protective cover -1- is correctly engaged -arrows-.

Continuation for all vehicles

-- Place the spring support -3- in the shock absorber -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Place the spring -1- with the Spring Compressor Kit - Spring Tensioner:V.A.G 1752/1 on the lower spring support -3-.

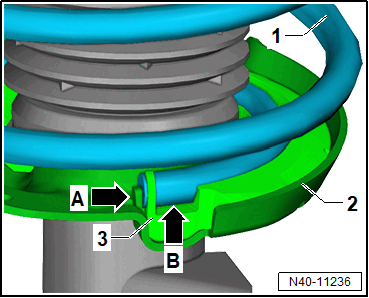

-- End of spring coil -arrow B- must rest against stop -arrow A-.

CAUTION:

There can be noises from an uneven assembly of the strut mount to the deep-groove ball bearing.

- Pay attention to the installation position of the strut mount to the deep-groove ball bearing when assembling.

-- Position the deep-groove ball bearing -2- on the spring -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

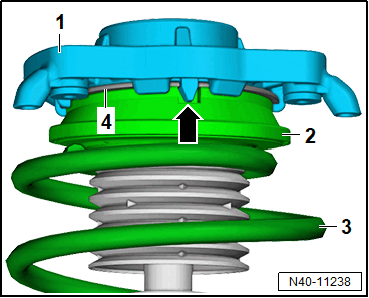

-- Align the strut mount -1- to the deep-groove ball bearing -2-.

Conditions

The tab of the strut mount -1- must be located in the cut-out -arrow- of the deep-groove ball bearing -2-.
The edge of the strut mount -1- must be folded around the collar of the deep-groove ball bearing -2-.

-- Make sure that the washer -4- is seated correctly.

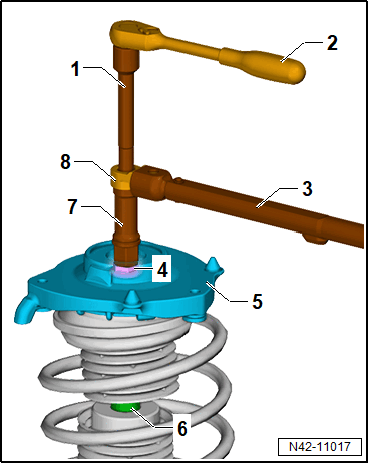

-- Tighten the nut -4- on the piston rod -6-. At the same time counterhold on the piston rod using the tools as shown.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Shock Absorber Set - Extension:T10001/8
Commercially Available Ratchet
Torque Wrench, 40-200Nm:V.A.G 1332A
Nut
Strut Mount
Piston Rod
Shock Absorber Set - Socket:T10001/5
Torque Wrench 1332 Insert - Ring Wrench - 21mm:V.A.G 1332/7

-- Relieve the tension on the Spring Compressor Kit - Spring Tensioner:V.A.G 1752/1 and remove it from the spring.

-- Remove the suspension strut from the Spring Compressor Kit - Strut Clamping Block:V.A.G 1752/20 .
