Control Arm Stone Chip Protection, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
The following information describes the removing and installing on the left side of the vehicle as an example.

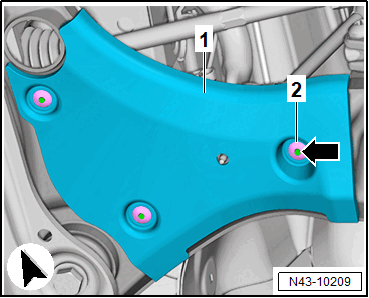

Press the Expanding Rivets with the Pins Inward
-- Press the pins -arrow- inward into all expanding rivets -2-.
-- Pry out the expanding rivets with a commercially available plastic wedge and remove the stone chip protection for the front control arm -1-.
-- Remove the pin -arrow- from above on the control arm.

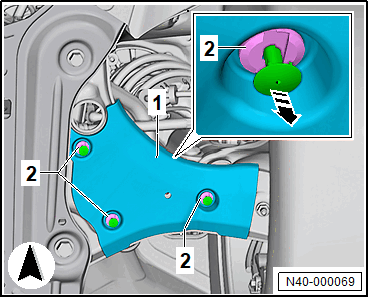

Remove the Expanding Rivets with the Pins
-- Remove the pins -arrow- from all expanding rivets -2-.
-- Pry out the expanding rivets with a commercially available plastic wedge and remove the stone chip protection for the control arm -1-.
Continuation for all vehicles
