Calibration Unit:VAS 6350A, INSTALLING AND ALIGNING: Installation

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The vehicle in the illustration is only a basic outline.

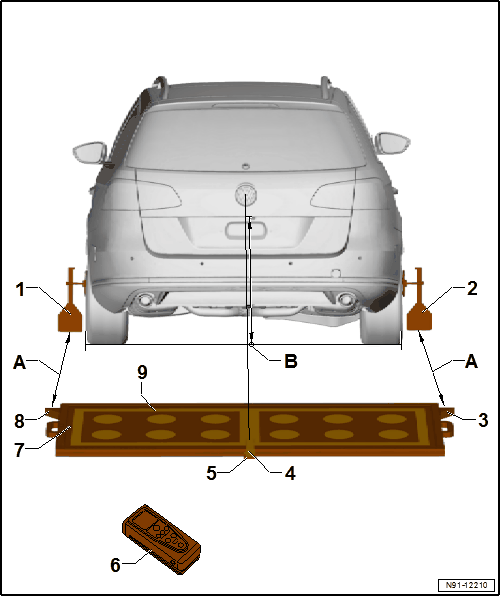

Fig 1: Overview of Installation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Calibration Tool - Wheel Center Mountings:VAS 6350/1
Calibration Tool - Wheel Center Mountings:VAS 6350/1
Right Angle Bracket
- Calibration Tool - Spacing Laser:VAS 6350/2 mount
Calibration Tool - Linear Laser:VAS 6350/3A
- On the calibration board
- Switching on and off. Refer to the appropriate Service Information.
Plastic Foot
- Three on underside of the calibration board
- Adjustable for aligning horizontal position of the calibration board
Calibration Tool - Spacing Laser:VAS 6350/2
- Refer to the appropriate Service Information for notes on the operation.
Level
- On the calibration board
- For checking the horizontal position
Left Angle Bracket
- Calibration Tool - Spacing Laser:VAS 6350/2 mount
Calibration Board
- Between the mounts on the calibration board and the Calibration Tool - Wheel Center Mountings:VAS 6350/1 dimension -A- 1.50 m (4.9 feet) through 2.10 m (6.9 feet).
- Dimension -B- height difference is between the center of the rearview camera lens and the wheel contact surface.

Calibration board orientation

-- Position the calibration platform behind the vehicle at a distance of 1.50 m to 2.10 m (4.9 feet to 6.9 feet) to the rear wheels, see -dimension A- in the overview illustration. Refer to Installation .

-- Bring the Calibration Tool:VAS 6350A into a horizontal position.

-- Twist the plastic feet under the calibration board so that the air bubble in the level is located exactly in the center of the indicator -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

Reflections impair the and may make it impossible to perform the calibration.

- Make sure light does not reflect off the calibration board.

NOTE:

The vehicle in the illustration is only a basic outline.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

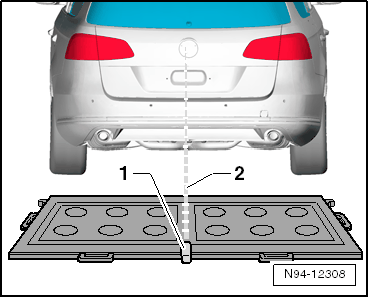

-- Switch on the Calibration Tool - Linear Laser:VAS 6350/3 -1- on the calibration board and adjust the entire Calibration Unit:VAS 6350A so that the laser beam -2- hits the center of the vehicle rear above the VW emblem.

Continue calibrating the Rearview Camera -R189-. Refer to Rearview Camera -R189-, CALIBRATING .
