Wiper Blade, Removing And Installing: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
CAUTION:
Risk of damaging the body due to wrong allocation of the wiper blades.
- When installing, pay attention that the wiper blades for the driver's and passenger's side have different lengths.

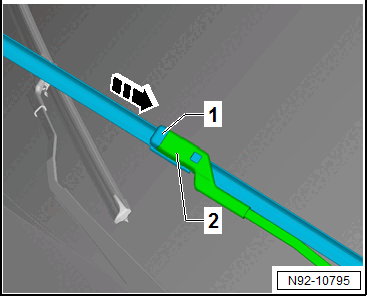

-- Guide the wiper blade -1- parallel into the windshield wiper arm -2- -arrow-. Make sure that the wiper blade -1- is slid into the windshield wiper arm -2- until the clip audibly engages.
To leave the service position:
-- Operate the windshield wiper switch. or
-- Drive the vehicle faster than 6 km/h (3.7 mph).
