Windshield Wiper Motor, Replacing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Deactivate the wiper motor APP function. Refer to WINDSHIELD WIPER MOTOR, DEACTIVATING ALTERNATING PARK POSITION FUNCTION .

-- Remove the Windshield Wiper Motor -V-. Refer to Windshield Wiper Motor -V-, REMOVING AND INSTALLING .

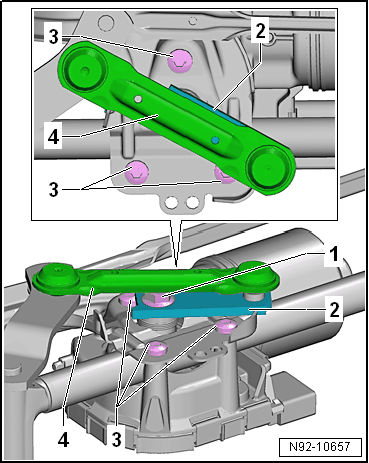

-- Pry out the operating rod -4- at the ball joint from the motor crank -2- using the Pry Lever:80-200 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nut -1-.

-- Remove the motor crank -2- from the windshield wiper motor shaft.

-- Remove the bolts -3-.

-- Remove the Windshield Wiper Motor -V- from the windshield wiper frame.
