Overview - Windshield Wiper Motor And Windshield Wiper Frame

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

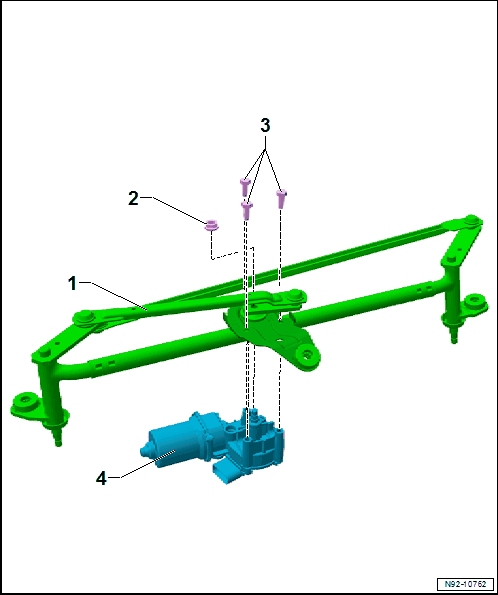

Fig 1: Exploded View Of Windshield Wiper Motor And Windshield Wiper Frame
GWWN92-10762Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Windshield Wiper Frame
  2. Nut
    • 25 Nm
  3. Bolts
    • 9 Nm
    • Quantity: 3
  4. Windshield Wiper Motor -V-
