Overview - Rear Level Control System Sensor, Multi-Link Suspension, Fwd
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

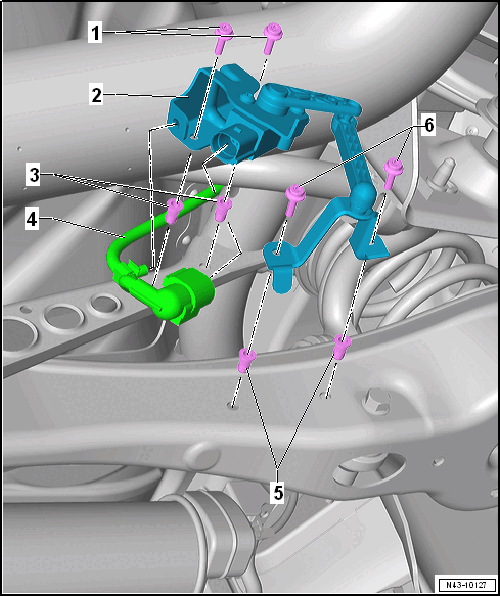

The overview shows the left side of the vehicle as an example
The level control system sensor is only available as a replacement part together with the coupling rod and upper and lower retaining plates.
- Bolt
- 5 Nm
- Rear Level Control System Sensor --
- Complete with attachments
- The lever must face toward outside of vehicle
- Removing and Installing. Refer to LEFT AND RIGHT REAR LEVEL CONTROL SYSTEM SENSOR -G76- / -G77-, REMOVING AND INSTALLING .
- Perform a basic setting using the Vehicle Diagnostic Tester.
- Pop Rivet Nut
- Connector
- Pop Rivet Nut
- Bolt
- 5 Nm
