Radio/Navigation System Frame, Removing And Installing (Instrument Cluster With Analog Instruments): Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

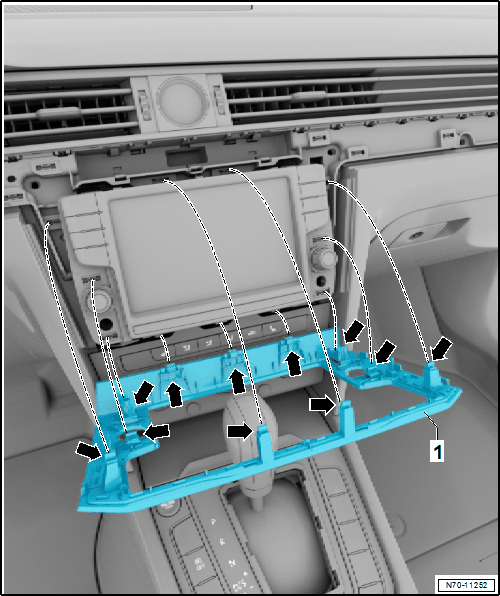

-- Carefully unclip the frame -1- from the clip connections -arrows-, using the :VAS895 015  .

GWWN70-11252Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
